Product number:

NJ 2205-E-XL-TVP2

Brand:

Product name:

bearing

Sizes:

25X52X18

Suffixes:

E - növelt teherbírás

TVP2 - görgõn vezetett polyamid kosár

XL,X-life - a futófelületek, gördülõelemek optimalizálásával megnövelt élettartam

Replacements:

NJ 2205-E-TVP2 NJ 2205 ECP

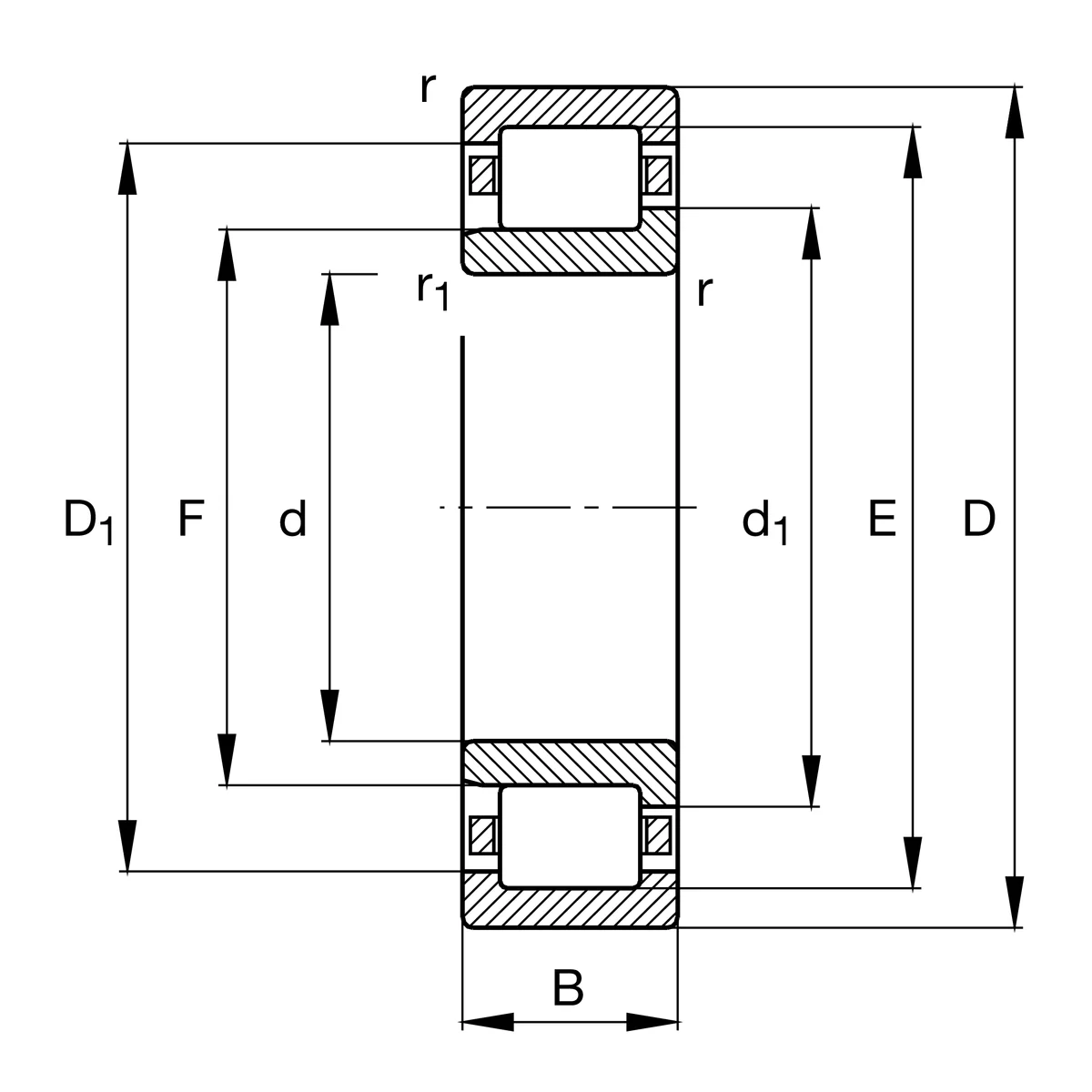

d	Bore diameter	25 mm
D	Outside diameter	52 mm
B	Width	18 mm
Cr	Basic dynamic load rating, radial	41.500 N
C0r	Basic static load rating, radial	34.500 N
Cur	Fatigue load limit, radial	5.800 N
nG	Limiting speed	19.800 1/min
nϑr	Reference speed	9.600 1/min
≈m	Weight	0,164 kg

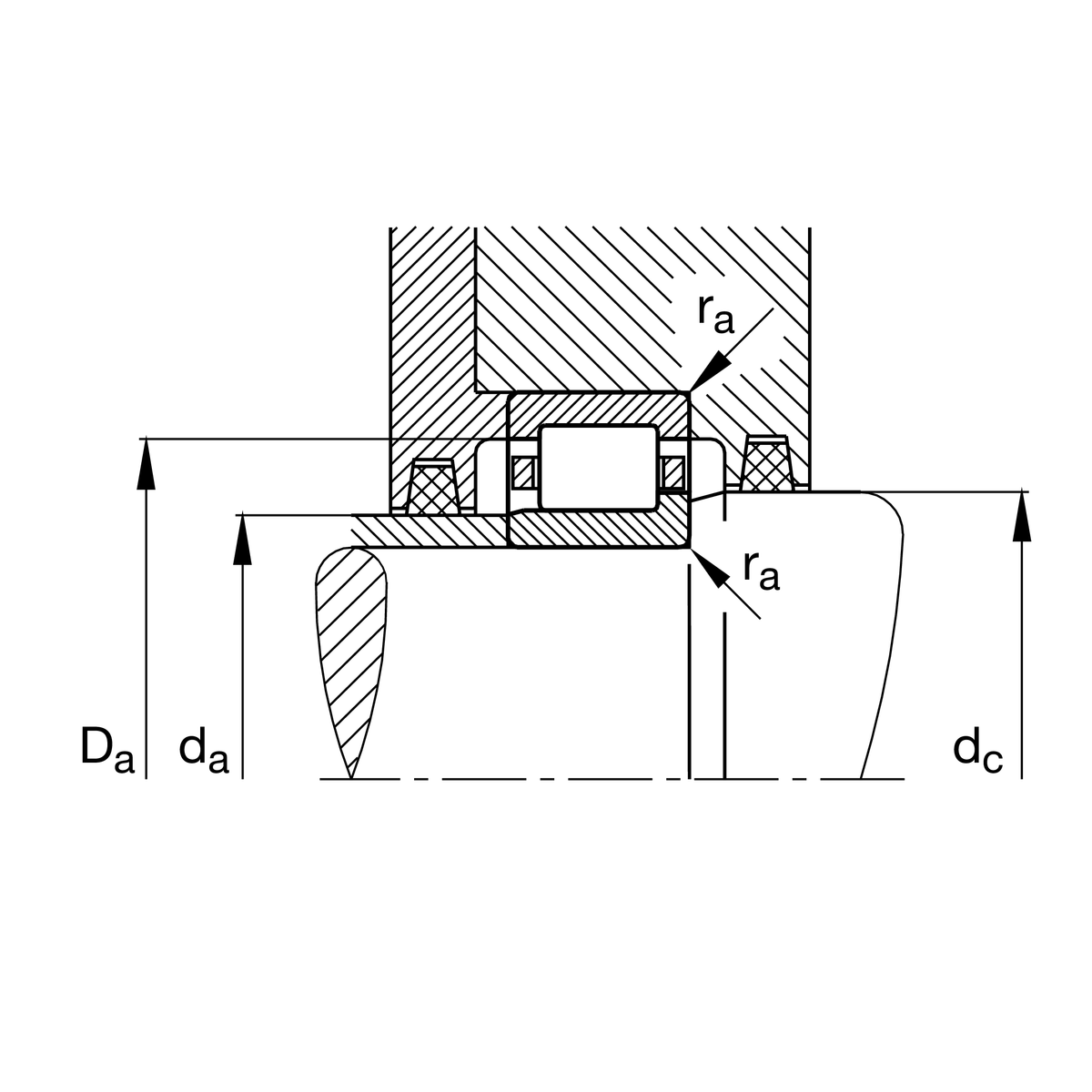

da min	Minimum diameter shaft shoulder	29 mm
da max	Maximum diameter of shaft shoulder	31 mm
Da max	Maximum diameter of housing shoulder	46 mm
dc min	Minimum shaft shoulder	37 mm
ra max	Maximum recess radius	1 mm
rmin	Minimum chamfer dimension	1 mm
r1 min	Minimum chamfer dimension	0,6 mm

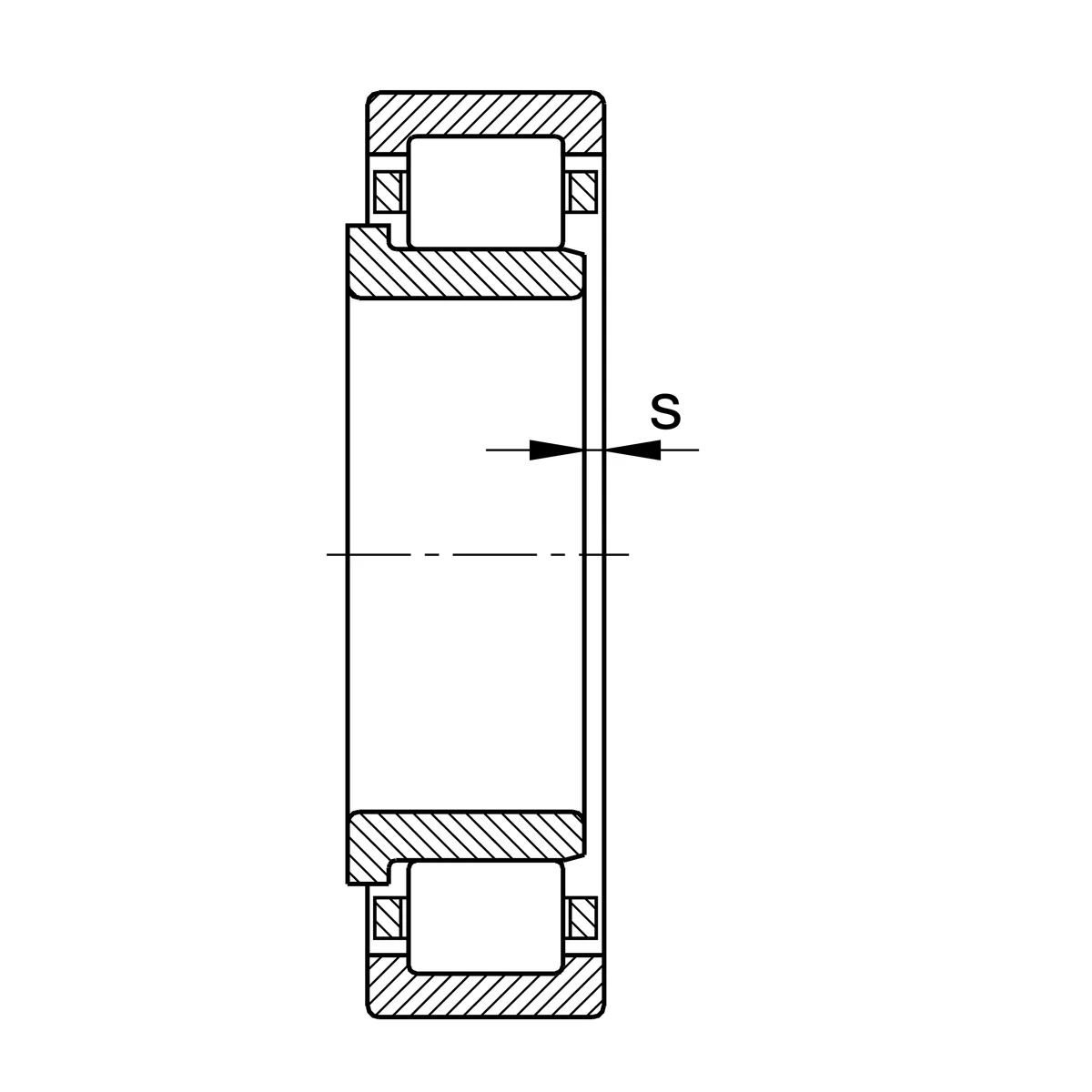

s	Axial displacement	1,7 mm
E	Raceway diameter outer ring	46,5 mm
F	Raceway diameter inner ring	31,5 mm

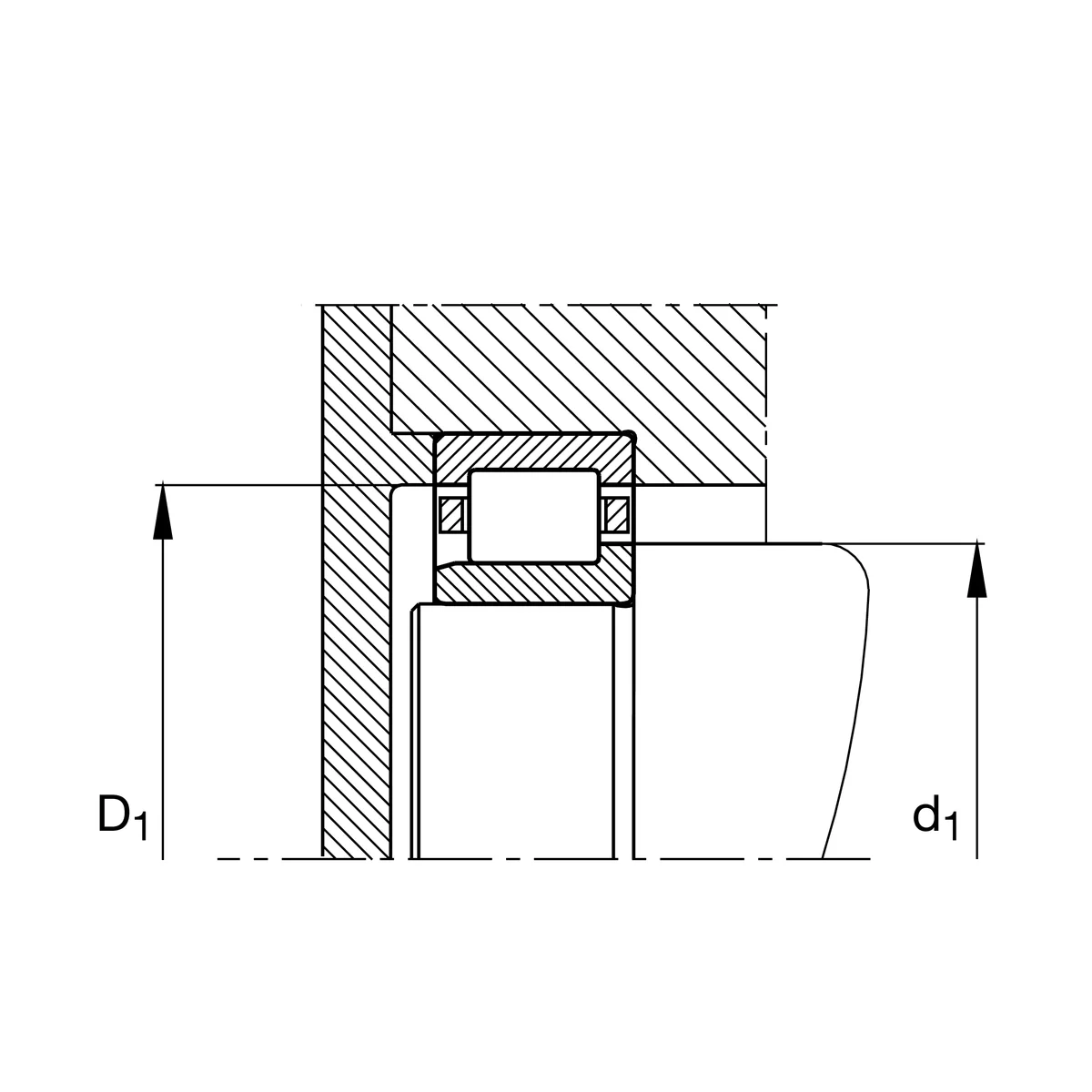

D1 min	Minimum rib diameter outer ring	43,8 mm
d1	Maximum rib diameter inner ring	34,7 mm
Tmin	Operating temperature min.	-30 °C
Tmax	Operating temperature max.	120 °C
Design	Increased Capacity Design	E
Cage	Solid Window Cage made from PA66	TVP2
Radial internal clearance	Group N (CN)	CN
Tolerance class	Normal (PN)	PN
