ENProduct details T2ED 045 KOYO
Net price:
47.716 €/db
Inquiry On stock
17 db
External stock
160 db
Next delivery:
2026-04-30 - 15 db
Product number:

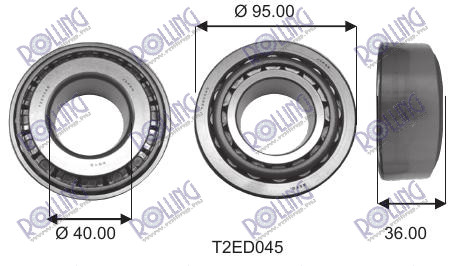

T2ED 045
Brand:
Product name:
kúpgörg.csapágy
Sizes:
45X95X36/30 B:35
Replacements:
201047 VKHB 2184 VKT 8415 JF 4549/10 5010136770 5000877056 5003090060 5003090061 5003090097 SET 1297Product details from catalogue:
| d | 45 mm |
| D | 95 mm |
| T | 36 mm |
| B | 35 mm |
| C | 30 mm |
| r(min.) | 2.5 mm |
| r1(min.) | 2.5 mm |
| Basic load ratings : Cr | 175 kN |
| Basic load ratings : C0r | 177 kN |
| Fatigue load limit : Cu | 27.2 kN |
| Limiting speeds(Grease lub.) | 4300 min-1 |
| Limiting speeds(Oil lub.) | 5700 min-1 |
| Load center spread : a | 23.8 mm |
| Constant e | 0.32 |
| Axial load factors : Y1 | 1.86 |
| Axial load factors : Y0 | 1.02 |
| da(min.) | 57 mm |
| db(max.) | 55 mm |
| Da(max.) | 83 mm |
| da(min.) | 80 mm |
| db(min.) | 89 mm |
| Sa(min.) | 6 mm |
| Sb(min.) | 6 mm |
| ra(max.) | 2 mm |
| rb(max.) | 2 mm |
| (Refer.)Mass | 1.20 kg |
