Product number:

NU 1009-XL-M1

Brand:

Product name:

bearing

Sizes:

45X75X16

Suffixes:

M1 - görgõn vezetett bronz kosár.zsírkenéshez javasolt

Replacements:

NU 1009-M1

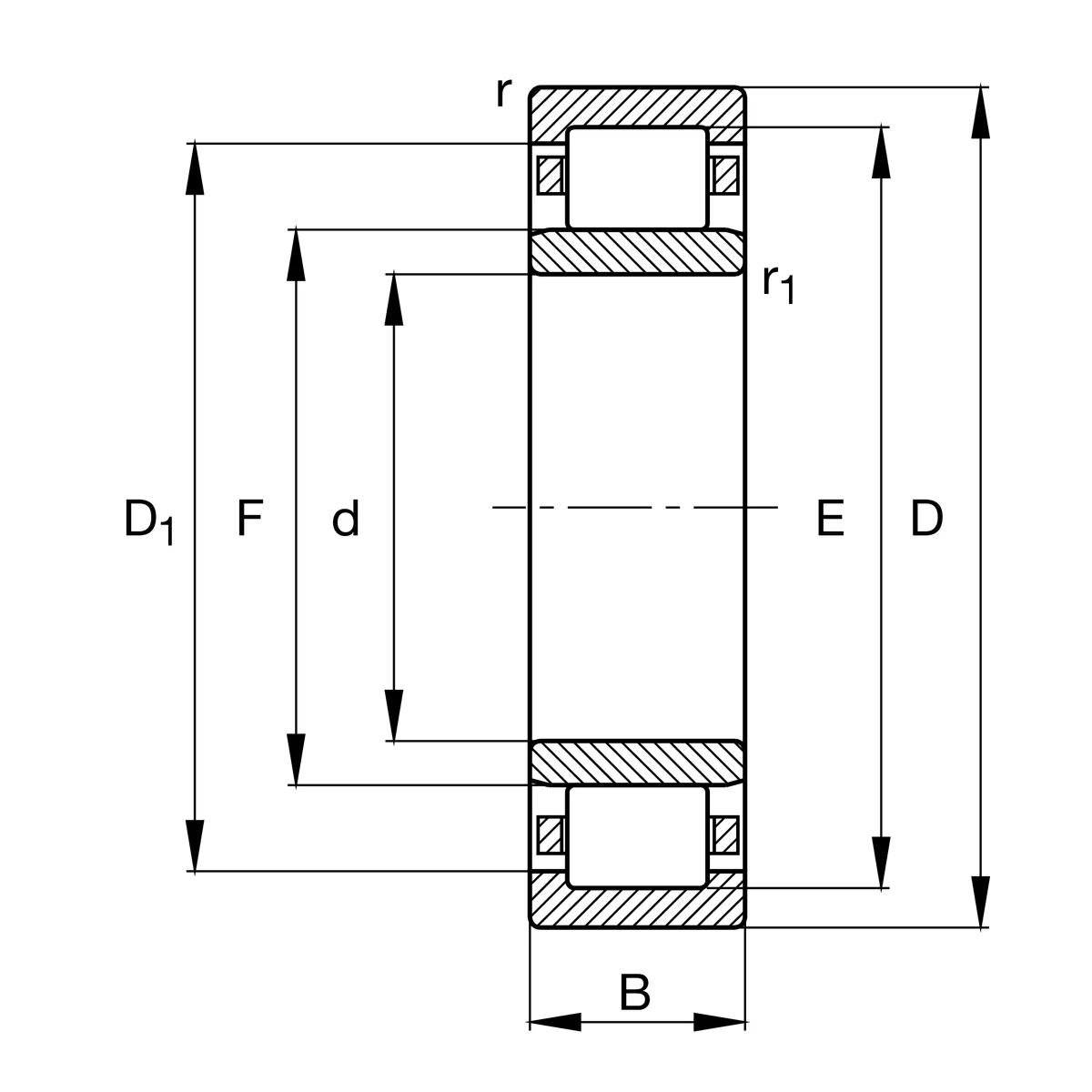

d	Bore diameter	45 mm
D	Outside diameter	75 mm
B	Width	16 mm
Cr	Basic dynamic load rating, radial	40.000 N
C0r	Basic static load rating, radial	37.500 N
Cur	Fatigue load limit, radial	4.900 N
nG	Limiting speed	18.400 1/min
nϑr	Reference speed	8.100 1/min
≈m	Weight	0,281 kg

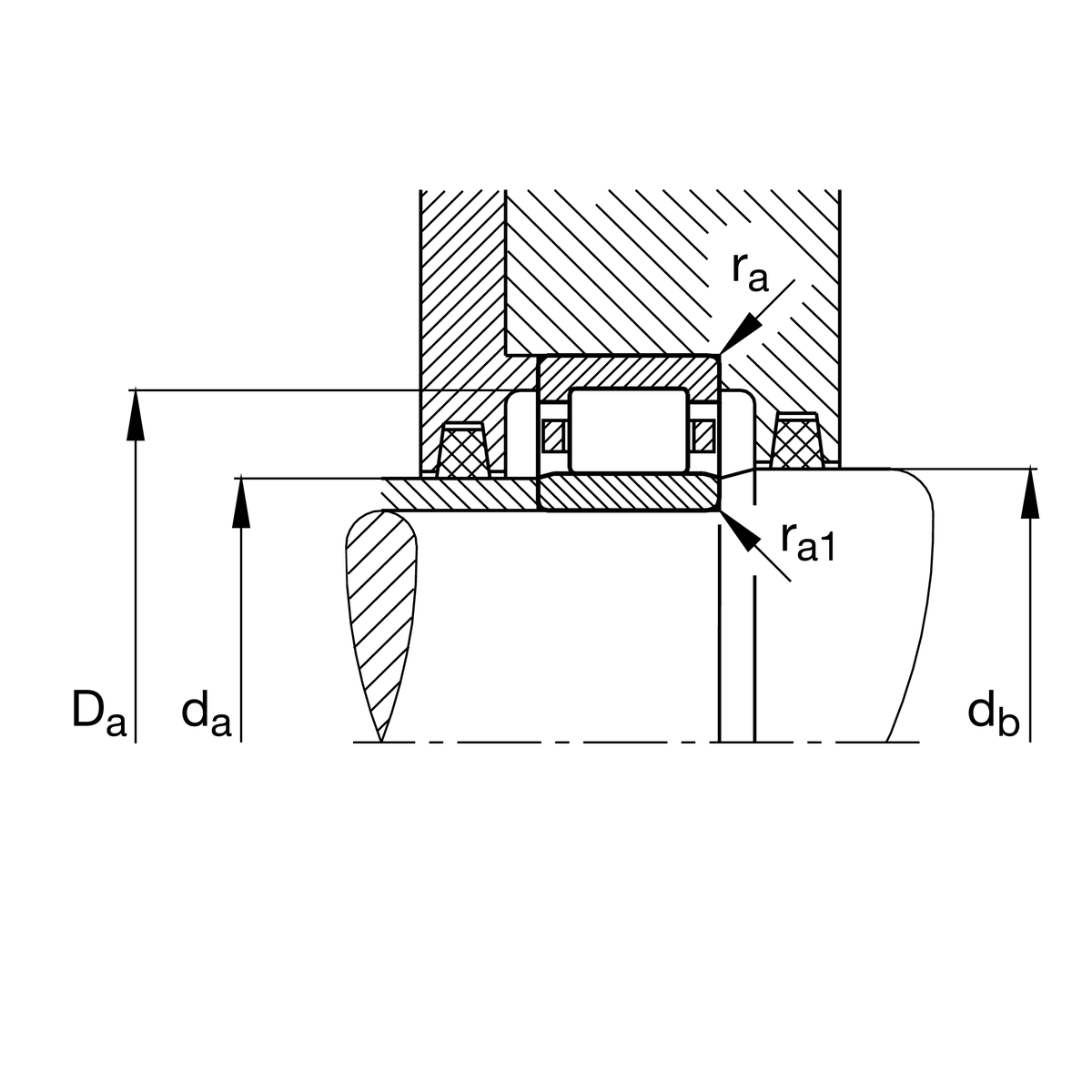

da min	Minimum diameter shaft shoulder	48 mm
da max	Maximum diameter of shaft shoulder	52 mm
db min	Minimum shaft shoulder	54 mm
Da max	Maximum diameter of housing shoulder	70 mm
ra max	Maximum recess radius	1 mm
ra1 max	Maximum recess radius	0,6 mm
rmin	Minimum chamfer dimension	1 mm
r1 min	Minimum chamfer dimension	0,6 mm

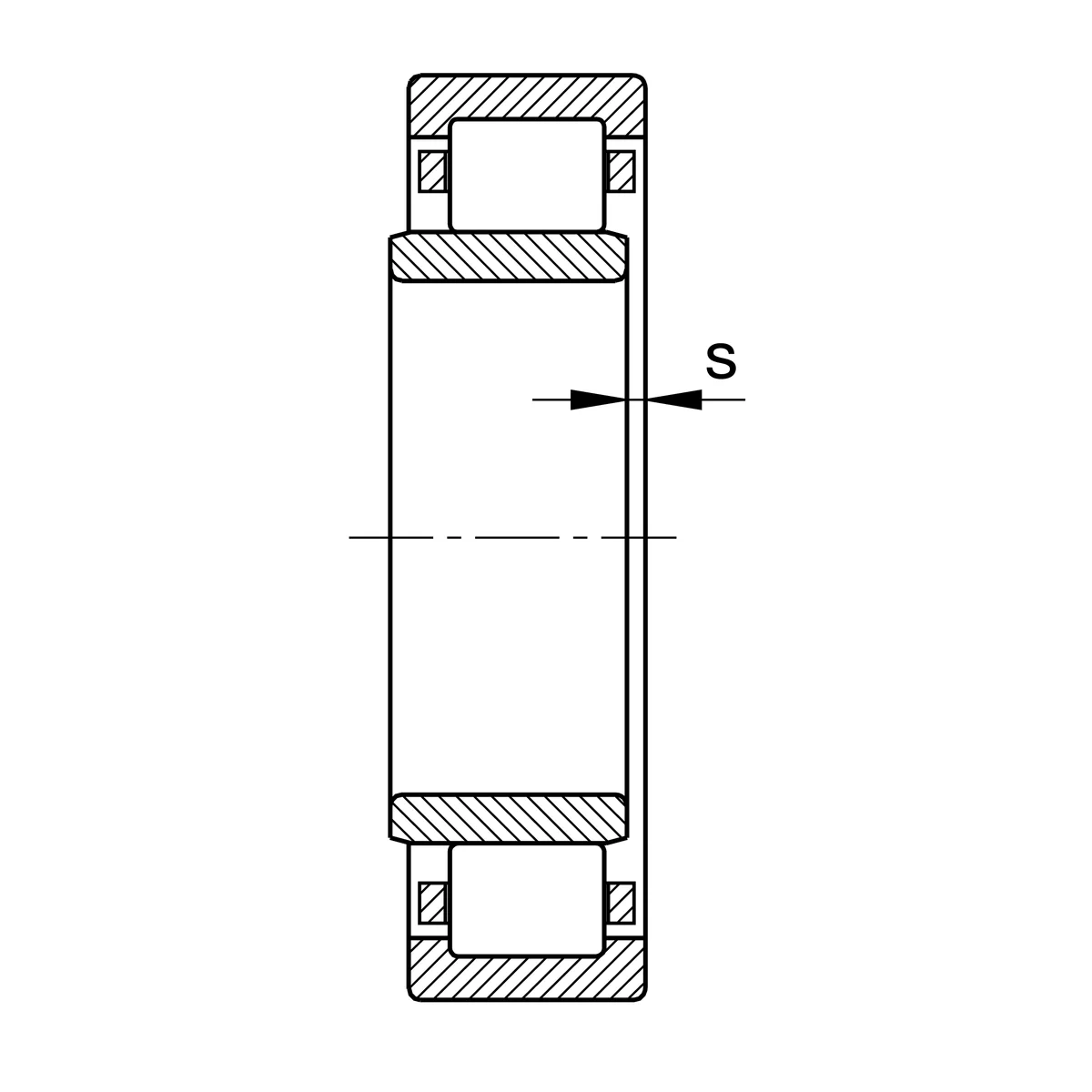

s	Axial displacement	2,5 mm
E	Raceway diameter outer ring	67,5 mm
F	Raceway diameter inner ring	52,5 mm
D1 min	Minimum rib diameter outer ring	64,5 mm
Tmin	Operating temperature min.	-30 °C
Tmax	Operating temperature max.	150 °C
Design		Standard
Cage	Two Piece Brass Cage Roller Guided	M1
Radial internal clearance	Group N (CN)	CN
Tolerance class	Normal (PN)	PN
