ENProduct details TR 0506 R KOYO
Net price:
12.759 €/db
Inquiry On stock
26 db
External stock
499 db
Next delivery:
2026-03-05 - 30 db
Product number:
TR 0506 R
Brand:
Product name:
kúpgörg.csapágy
Sizes:

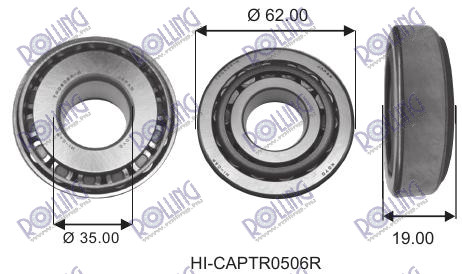

25X62X18.25/14 B:19 R:1.5 r:1.5
Replacements:
K 247/243 09265-25005 SUZUKI 90043-66013 DAIHATSU HR 30305 CN 30305 CN MB025346 MITSUBISHI VKBA 1936 BEARING 2 HR 30305 C 30305 CProduct details from catalogue:
| d | 25 mm |
| D | 62 mm |
| T | 18.25 mm |
| B | 17 mm |
| C | 14 mm |
| r(min.) | 1.5 mm |
| r1(min.) | 1.5 mm |
| Basic load ratings : Cr | 56.3 kN |
| Basic load ratings : C0r | 45.8 kN |
| Fatigue load limit : Cu | 6.50 kN |
| Limiting speeds(Grease lub.) | 6700 min-1 |
| Limiting speeds(Oil lub.) | 9000 min-1 |
| Load center spread : a | 16.3 mm |
| Constant e | 0.55 |
| Axial load factors : Y1 | 1.10 |
| Axial load factors : Y0 | 0.60 |
| da(min.) | 33.5 mm |
| db(max.) | 35 mm |
| Da(max.) | 53.5 mm |
| da(min.) | 50 mm |
| db(min.) | 58 mm |
| Sa(min.) | 3 mm |
| Sb(min.) | 4 mm |
| ra(max.) | 1.5 mm |
| rb(max.) | 1.5 mm |
| (Refer.)Mass | 0.275 kg |
