Product number:

RCJTY 30-XL-N

Brand:

Product name:

housing unit

Replacements:

FYTB506+YAR206 UCFL 206 RCJTY 30-N SFT 30 CJT 06-N+GYE 30 KRRB FYTB 30 TF OIU 30

Housing units RCJTY, two-bolt flanged housing units, cast iron, grub screws in inner ring, R seals

Replacements: RCJTY30-N

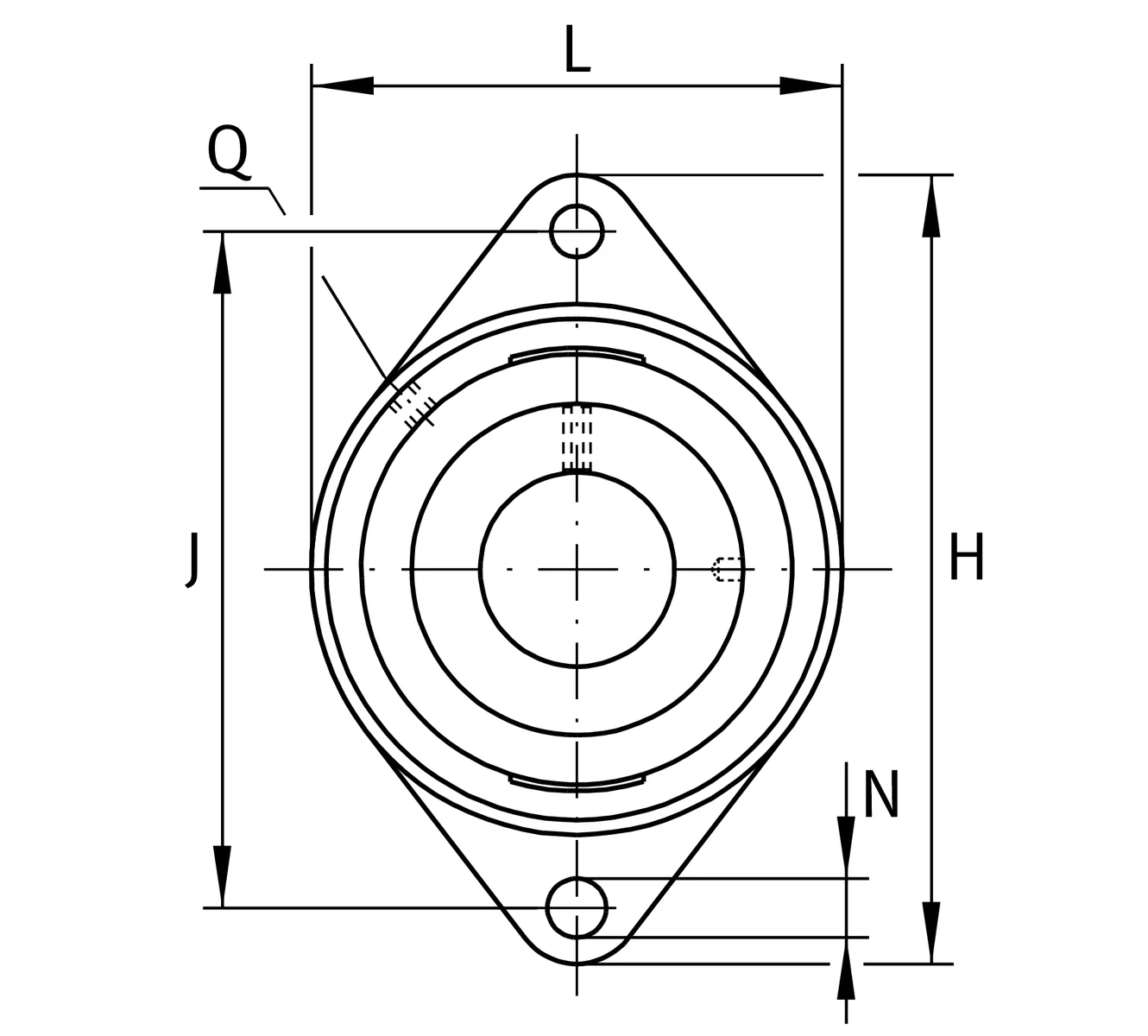

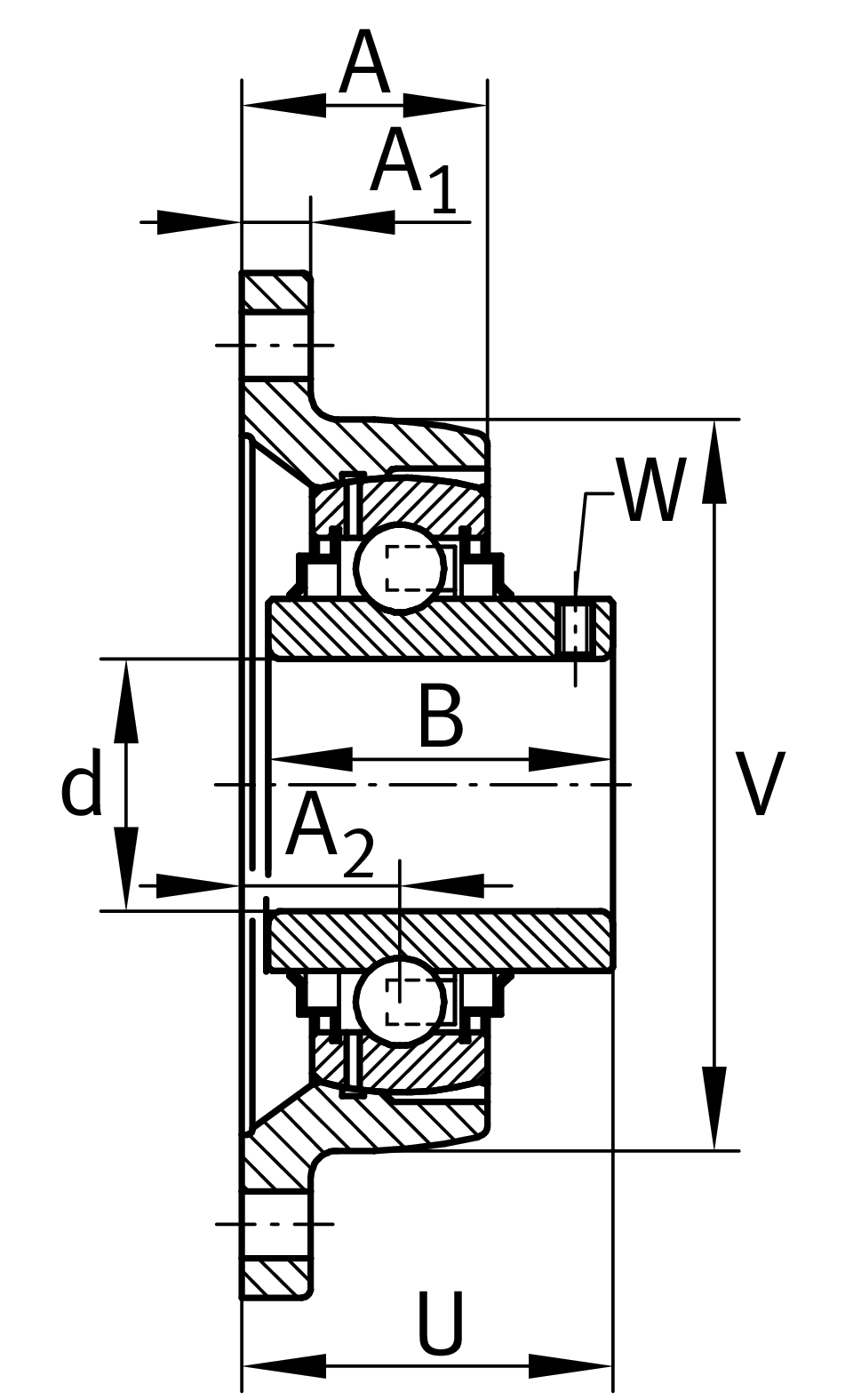

d	Bore diameter	30 mm
L	Flange width	80 mm
H	Height flange	142 mm
U	Total height unit	42,2 mm
Cr	Basic dynamic load rating, radial	19.500 N
C0r	Basic static load rating, radial	11.300 N
Cur	Fatigue load limit, radial	480 N
≈m	Weight	0,83 kg
J	Distance fixing bore	116,5 mm
N	Fixing bore	11,5 mm
n	Number of screwing holes	2
A1	Thickness of flange	12 mm
A2	Distance raceway	20 mm
B	Width	38,1 mm
Q	Connection thread lubrication	M6
Groove	Cast iron housing with undercut slot for end caps	N
