Product number:

T7FC 050

Brand:

Product name:

kúpgörg.csapágy

Structure:

tapered roller bearing

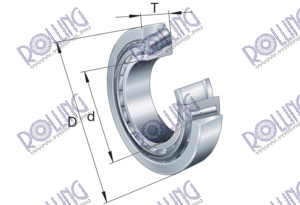

Sizes:

50X105X32

Replacements:

1905215 IVECO VKT 8418 JW 5049/JW 5010 JW 5049/10

Product details from catalogue:

d	50 mm
D	105 mm
T	32 mm
B	29 mm
C	22 mm
r(min.)	3 mm
r1(min.)	3 mm
Basic load ratings : Cr	141 kN
Basic load ratings : C0r	140 kN
Fatigue load limit : Cu	20.3 kN
Limiting speeds(Grease lub.)	3300 min-1
Limiting speeds(Oil lub.)	4600 min-1
Load center spread : a	35.9 mm
Constant e	0.87
Axial load factors : Y1	0.69
Axial load factors : Y0	0.38
da(min.)	64 mm
db(max.)	59 mm
Da(max.)	91 mm
Da(min.)	78 mm
Db(min.)	100 mm
Sa(min.)	4 mm
Sb(min.)	10 mm
ra(max.)	2.5 mm
rb(max.)	2.5 mm
(Refer.)Mass	1.25 kg
